Promo & Event

Product Lead: Linda Sari
This new feature is a page that provides information about promos and events that are currently available at Arkademi for customers. This feature will be present for a considerable time with some notes that need to be considered carefully, such as T&Cs (S&K) that must be ensured to be correct and the usage system between flash sales - coupons - coins that have several cases.

Links

Name	Link
Mockup Landing Page	https://www.figma.com/file/7ijvxuH2e6VJ8cZSHF2UQp/MOCKUP-Landing-Page?node-id=268%3A20&t=K8fw9as83uP3t1ro-0
Prototype	https://www.figma.com/file/wRlYC0lgOsBYv0E1f8nlNG/PROTOTYPE-LANDING-PAGE?node-id=123%3A16347&t=QSF63NzSLpYaFV9x-1

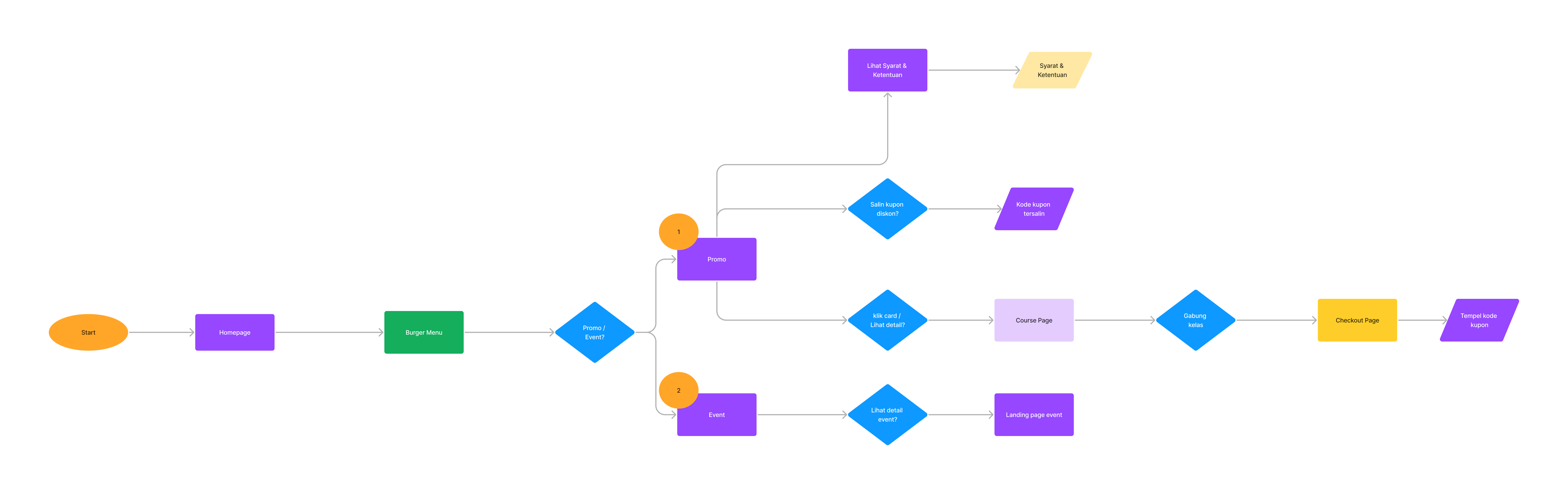

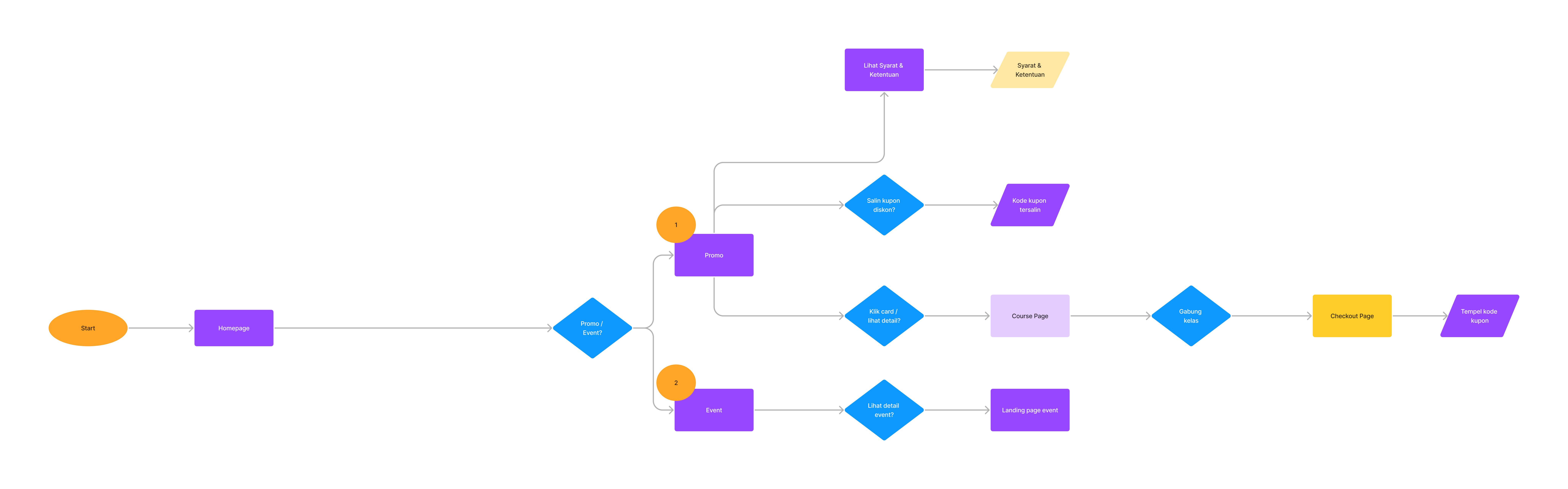

User Flow

Web

App

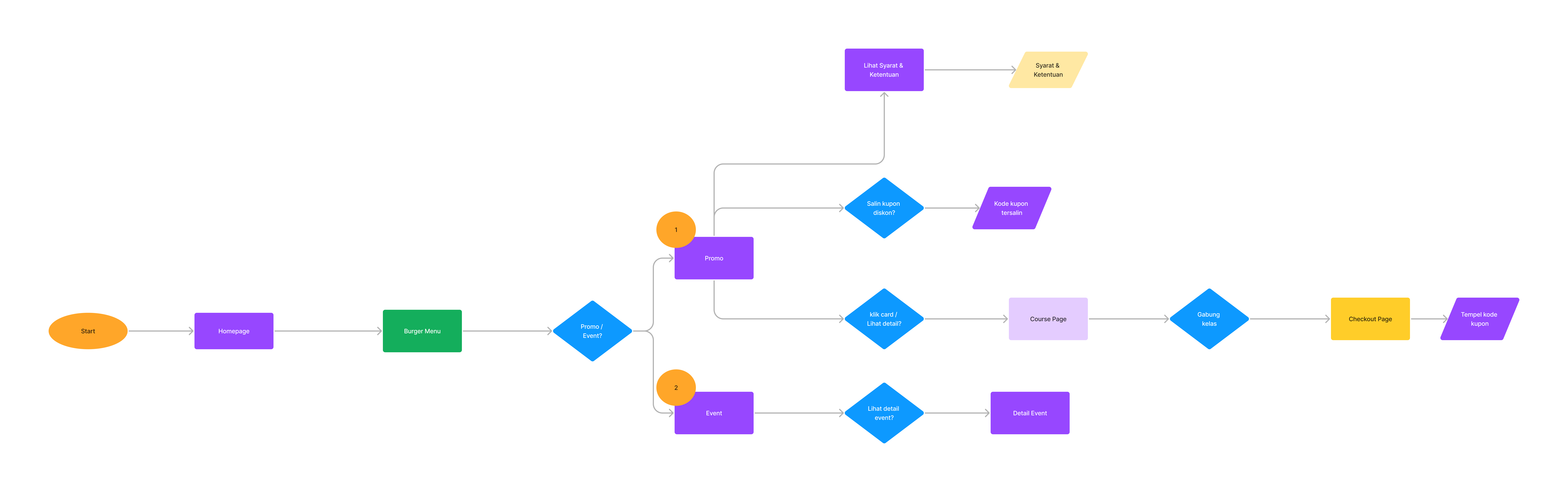

Responsive

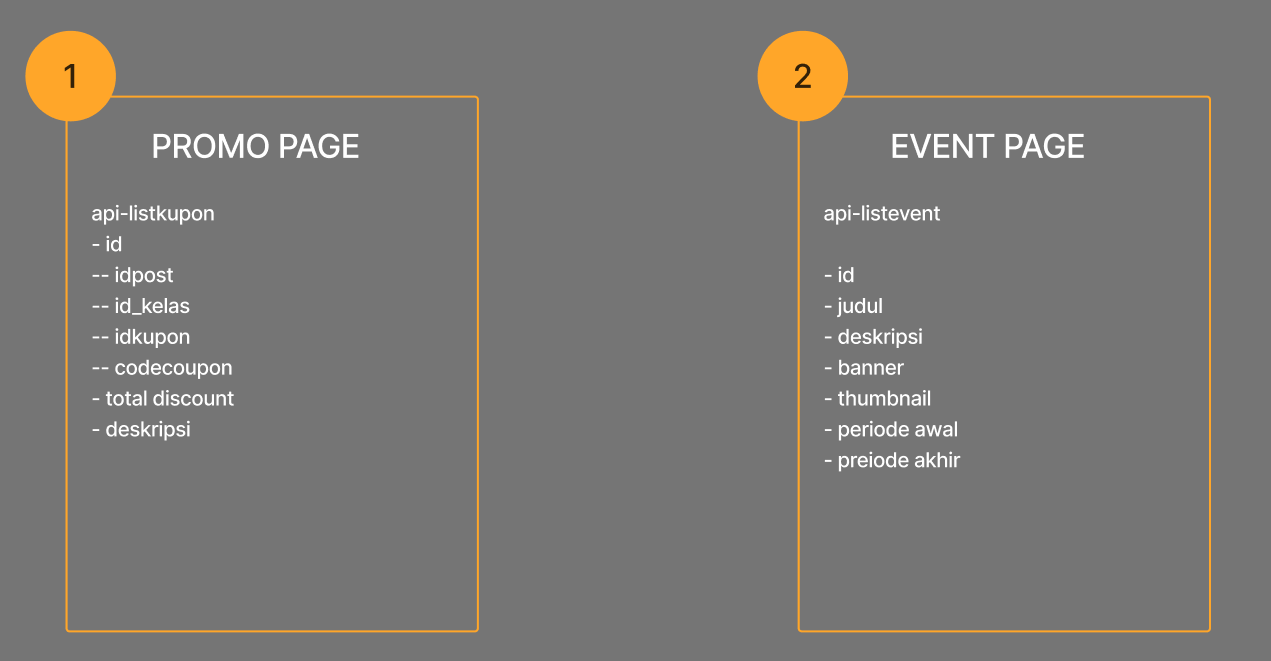

System Flow

Data Requirement

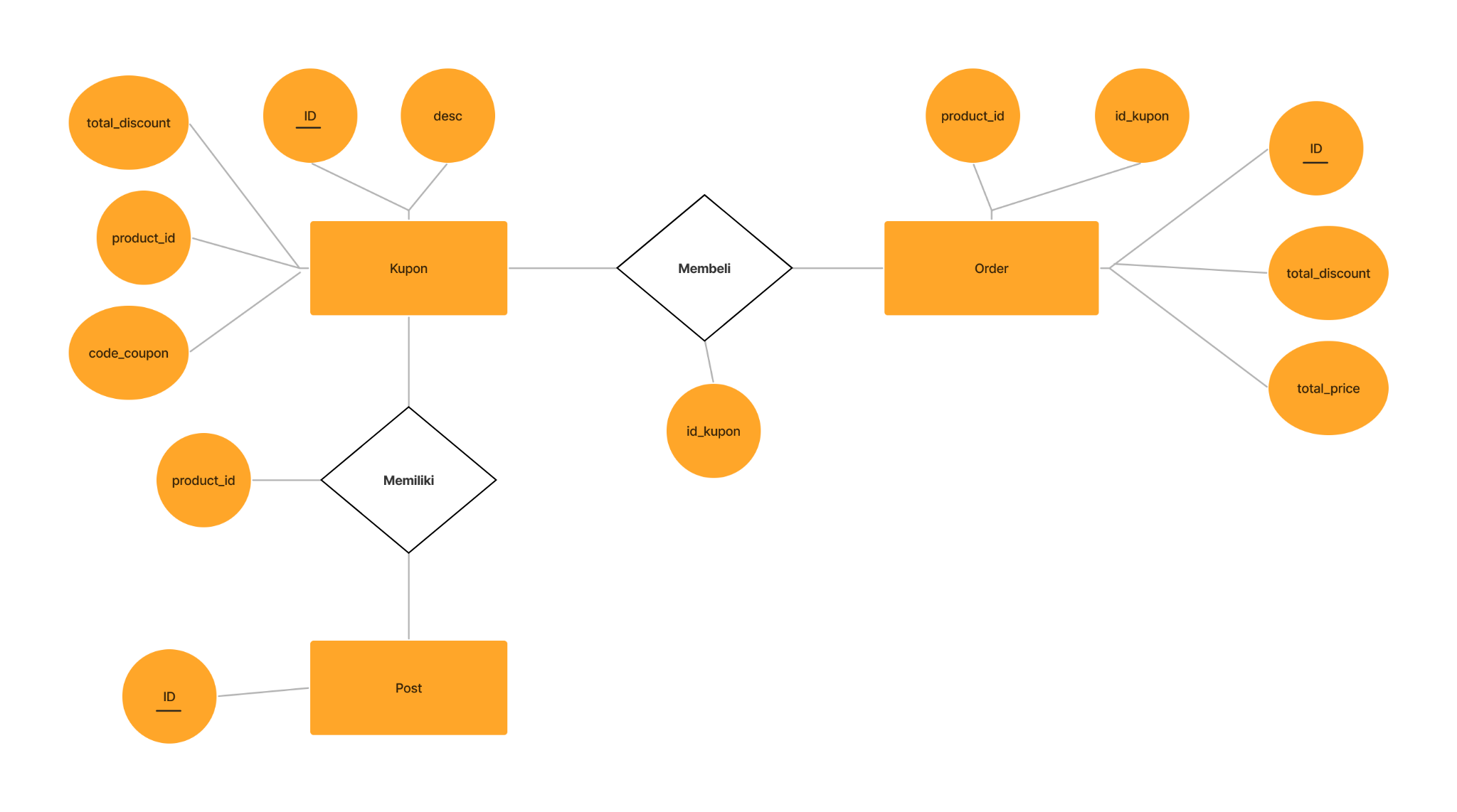

ERD

Technical Requirements

S&K

T&Cs (S&K) or terms and conditions. Is a communication tool to consumers regarding the requirements that apply to the use of promos.

API GET

https://api-course.arkademi.com/api/v1/coupon/discount/{code}

Response:

{
  "success": true,
  "message": "Success get data coupon!",
  "data": {
    "percent": 50,
    "course_name": "Brevet Pajak",
    "expiry_date": 12336323
  }
}

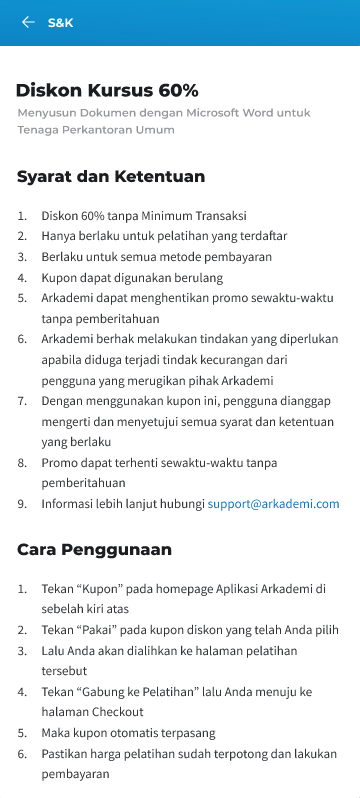

S&K (App)

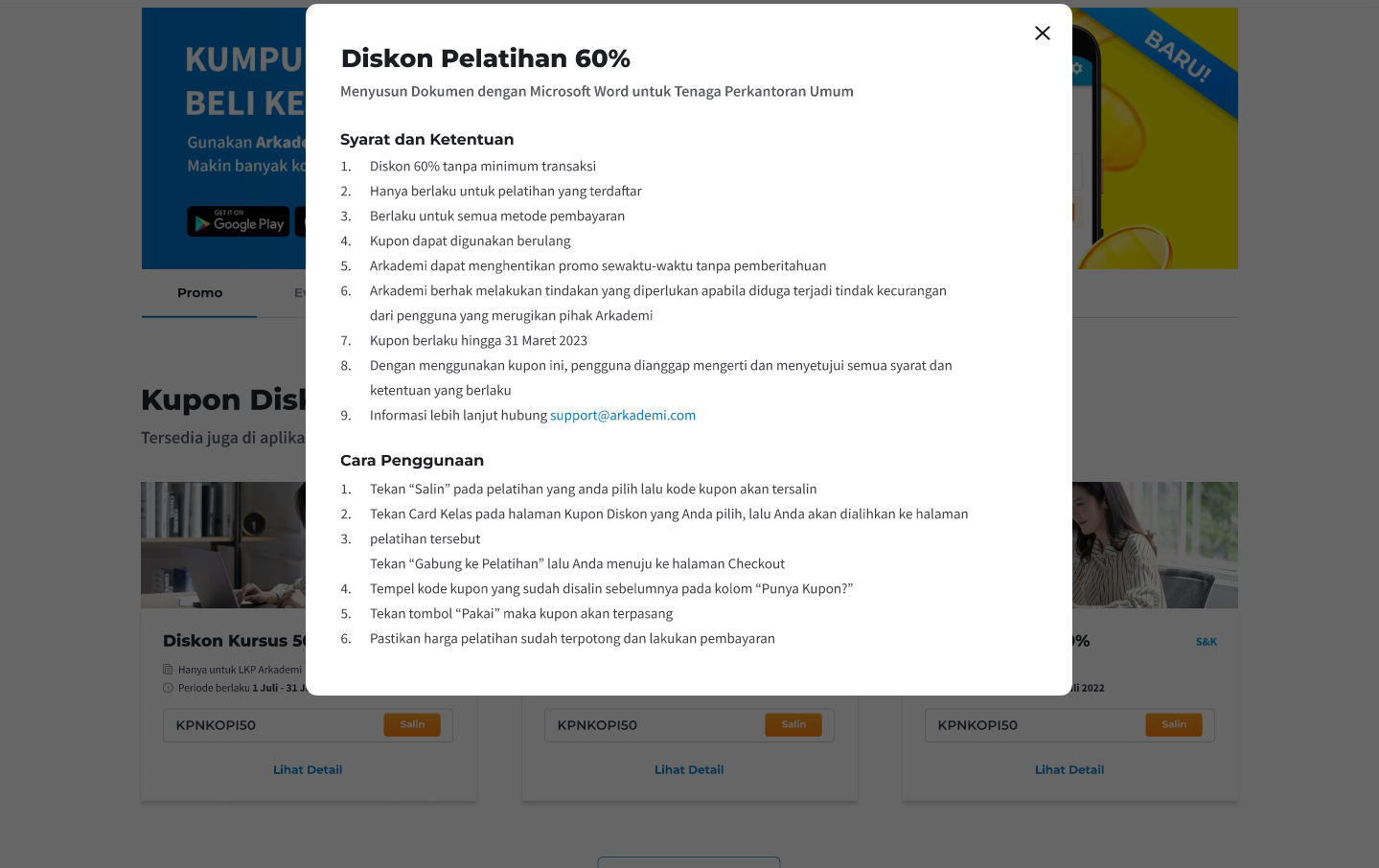

S&K (Web)

S&K (Resp)

Menu

Add "Promo & Event" as part of the menu, which will redirect to the promo and event page.

API GET

https://api-course.arkademi.com/api/v1/course/categories

Response:

{
  "status": true,
  "categories": [
    {
      "id": "399",
      "name": "Bahasa",
      "slug": "bahasa",
      "count": "45"
    },
  ]
}

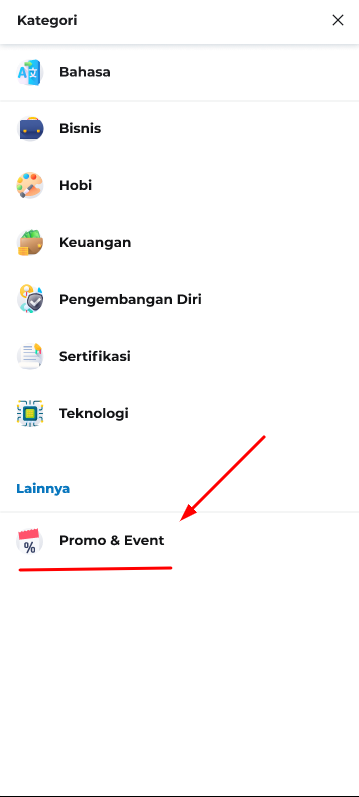

Menu (App)

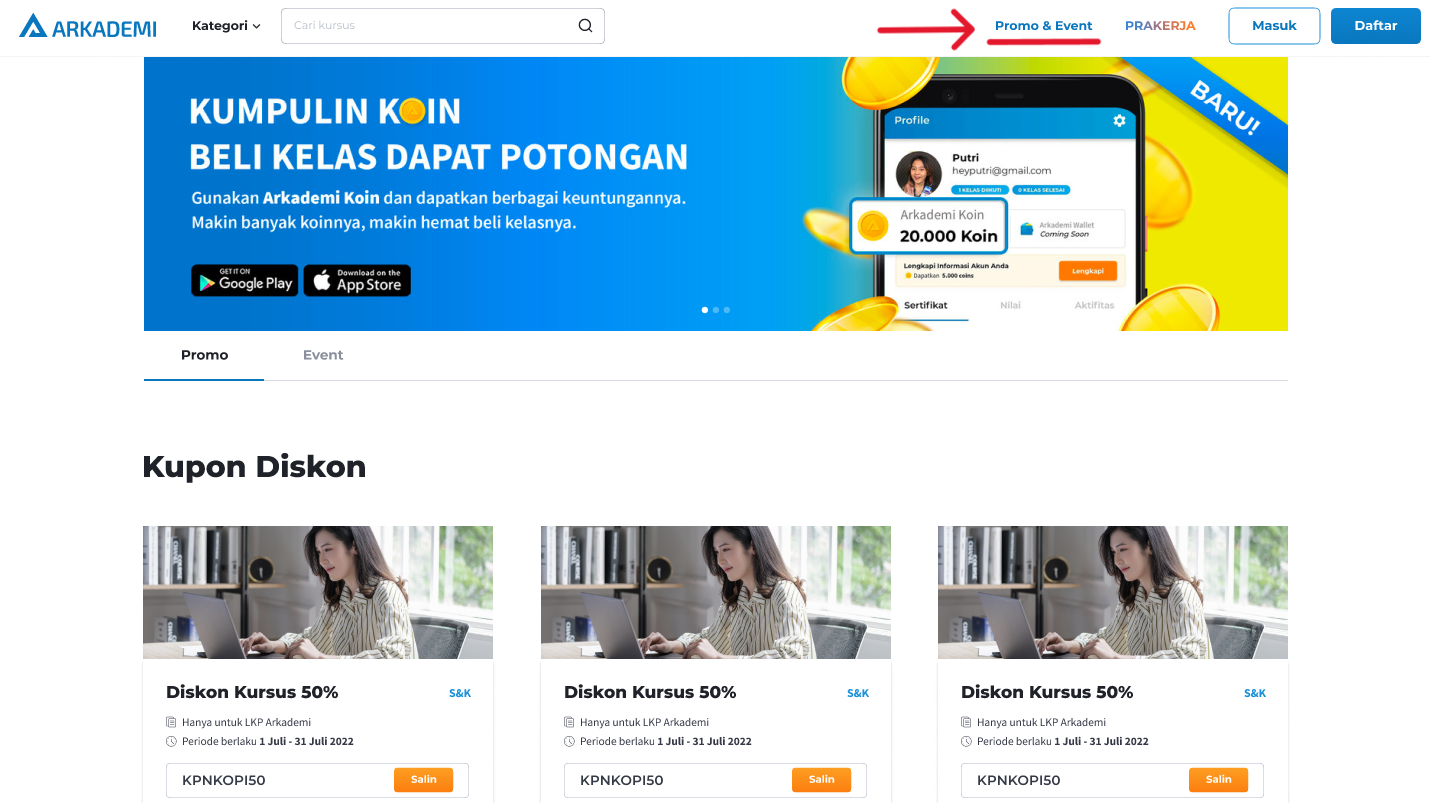

Menu (Web)

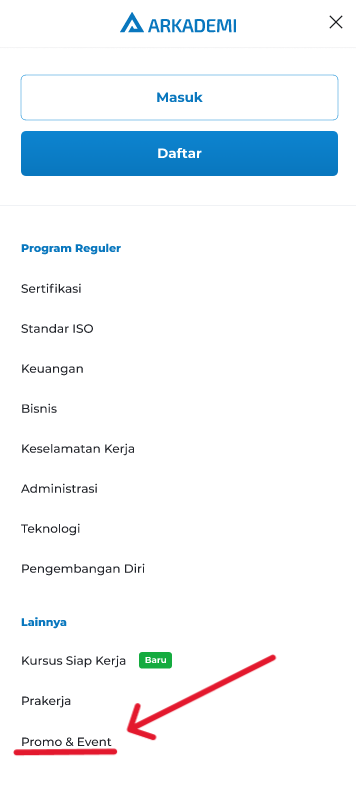

Menu (Resp)

Landing Page

Landing page, displaying available promos or events, the data is obtained from different APIs.

Promo

API GET

https://api-course.arkademi.com/api/v1/coupon/discount

Response:

{
  "success": true,
  "message": "Success get data coupon!",
  "data": [
    {
      "course_id": 15787,
      "course_slug": "kursus-teknik-lengkap-memulai-dan-mengembangkan-usaha",
      "course_name": "Kursus Teknik Lengkap Memulai dan Mengembangkan Usaha",
      "percent": 15,
      "fasilator": "Arkademi",
      "start_date": 1676912400,
      "expiry_date": 1677949200,
      "code": "KBNUSH15",
      "thumbnail": "https://apps.arkademi.com/wp-content/uploads/2018/06/Teknik-Memulai-dan-Mengembangkan-Usaha-01-1.jpg",
      "thumbnail_square": "https://apps.arkademi.com/wp-content/uploads/2018/06/Teknik-Memulai-dan-Mengembangkan-Usaha-01.jpg"
    },
  ]
}

Event

API GET

https://api-course.arkademi.com/api/v1/homepage/event

Response:

{
  "success": true,
  "message": "Success get data event",
  "data": [
    {
      "title": "Kompetisi Artikel SEO",
      "description": "Menangkan total hadiah Rp5 Juta untuk para pemenang Kompetisi Artikel SEO.",
      "thumbnail": "https://d19izmiuoyzsz.cloudfront.net/images/y3Al9c10zgsvM2HyXudVTEBK4ipVBRxSYF1Njqpu.png",
      "link": "https://arkademi.com/pages/kompetisi-seo/",
      "start_date": -25200,
      "end_date": -25200
    }
  ]
}

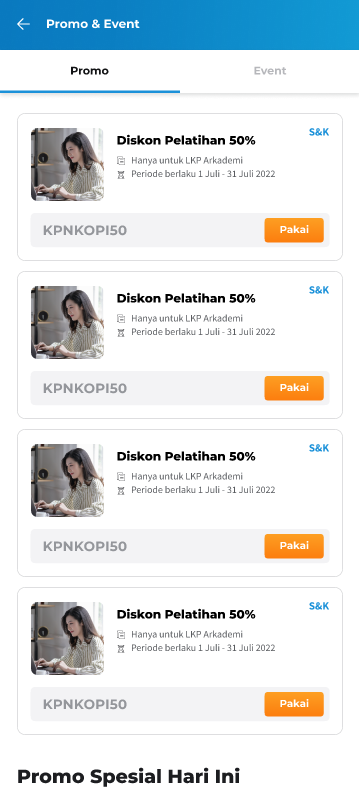

Landing Page (App)

Landing Page (Web)

Landing page untuk promo dan event terdapat dalam satu halaman yang dibedakan melalui tabs.

Tabs

Display of Promo and Event menu accessed through tabs on one page.

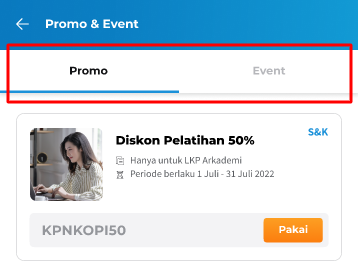

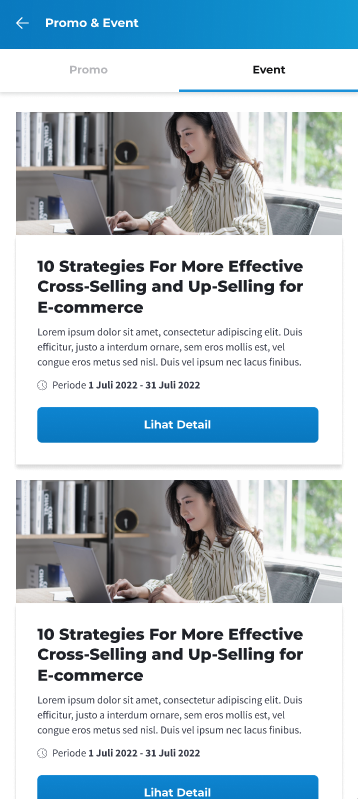

Tabs (App)

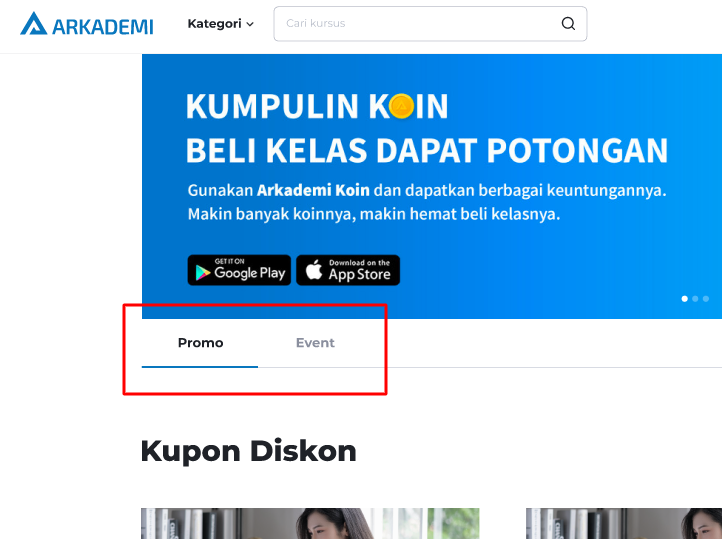

Tabs (Web)

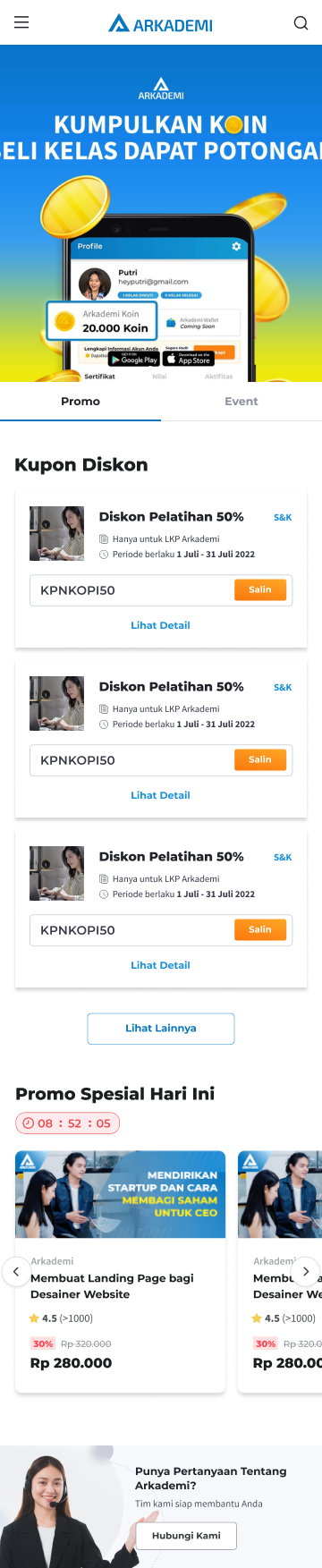

Tabs (Resp)

Tracker Implementation

Landing Page

Element	Type	Event (Web)	Event (App)	Tag Type	Configuration Tag	Trigger Type
a whole page	view	view_lp_promo	view_lp_promo_mbl	Google Analytics: GA4 Event	Google Analytic 4	Click - Just Links

(A whole page)

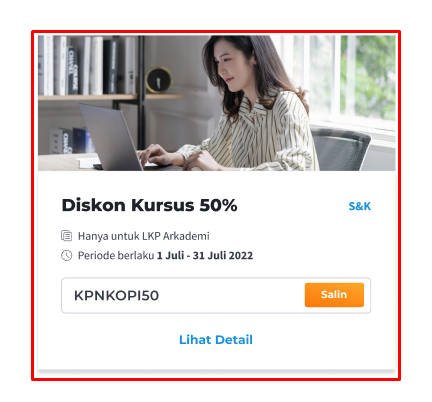

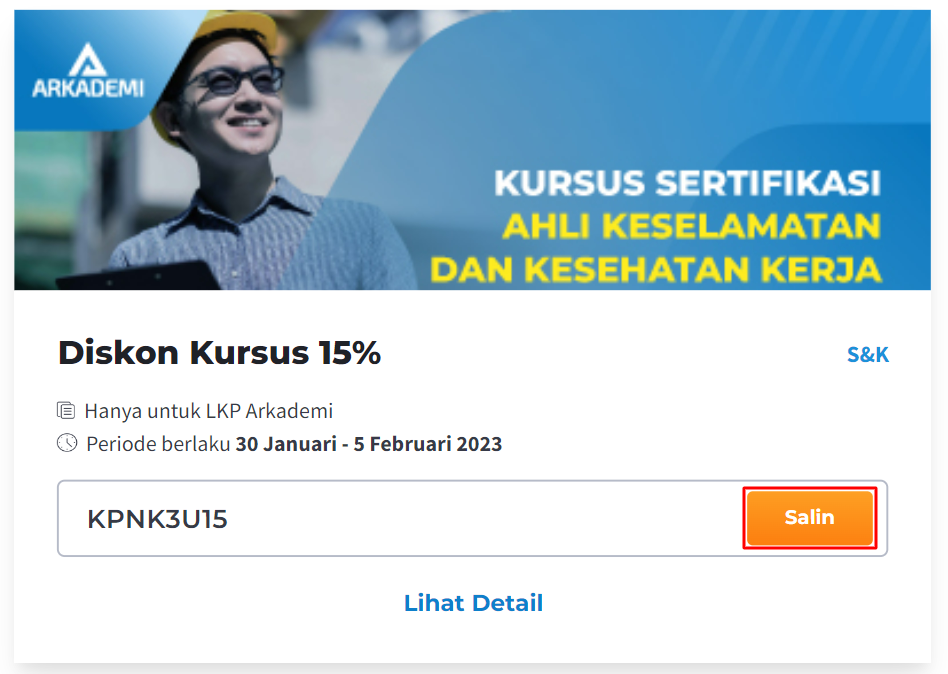

"Salin" Button

Element	Type	Event	Event (App)	Tag Type	Configuration Tag	Trigger Type
Button	click	lp_click_salin	lp_click_salin_mbl	Google Analytics: GA4 Event	Google Analytic 4	Click - All Elements

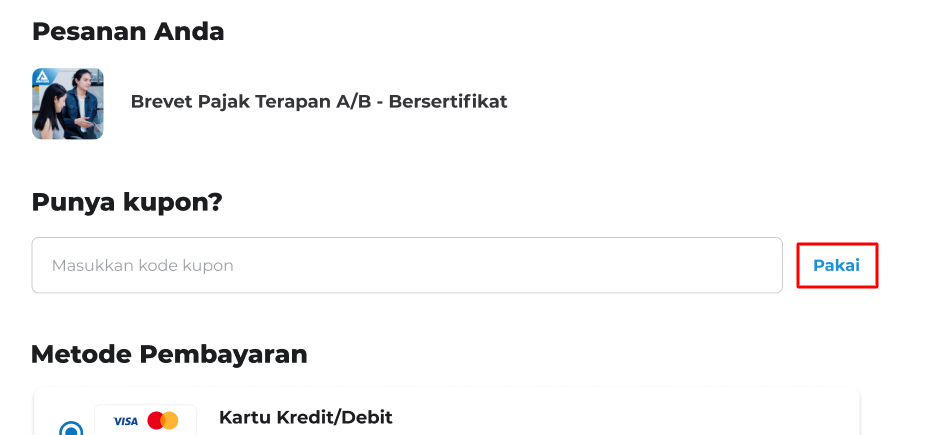

"Pakai" Button

Element	Type	Event	Event (App)	Tag Type	Configuration Tag	Trigger Type
Button	click	lp_click_pakai	lp_click_pakai_mbl	Google Analytics: GA4 Event	Google Analytic 4	Click - All Elements

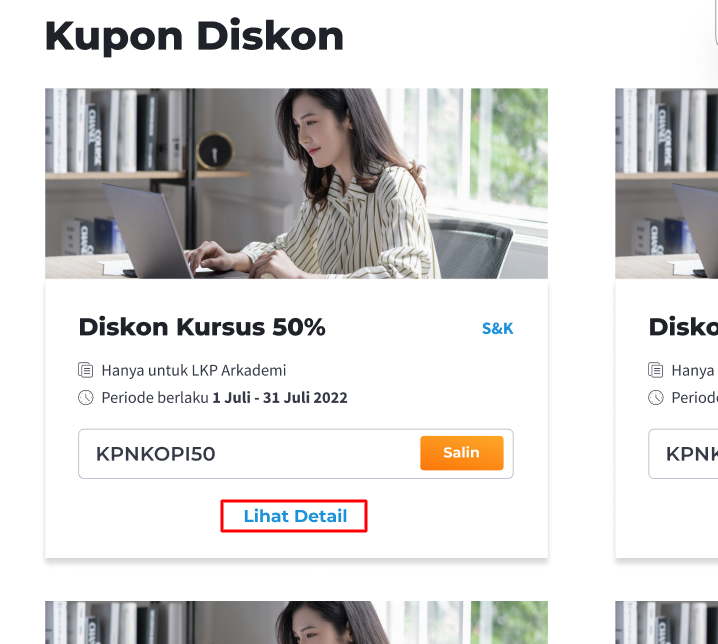

"Lihat Detail" Button

Element	Type	Event	Event (App)	Tag Type	Configuration Tag	Trigger Type
Button	click	lp_course_page	lp_course_page_mbl	Google Analytics: GA4 Event	Google Analytic 4	Click - All Elements

"Kupon" Card

Element	Type	Event	Event (App)	Tag Type	Configuration Tag	Trigger Type
Card	click	lp_course_page	lp_couse_page_mbl	Google Analytics: GA4 Event	Google Analytic 4	Click - Just Links

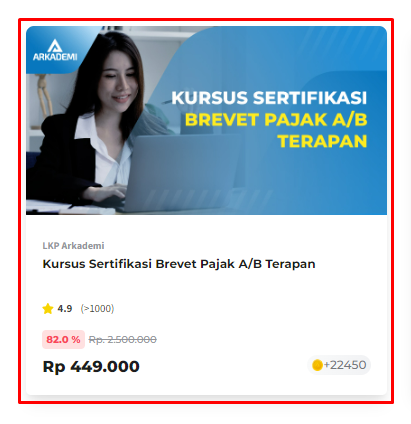

"Kelas" Card

Element	Type	Event	Event (App)	Tag Type	Configuration Tag	Trigger Type
Card	click	lp_card_kelas	lp_card_kelas_mbl	Google Analytics: GA4 Event	Google Analytic 4	Click - All Elements

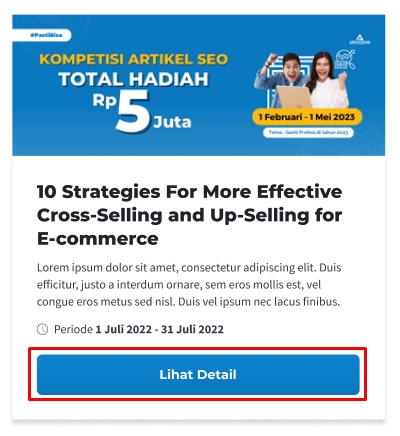

"Lihat Detail" on Page Event

Element	Type	Event	Event (App)	Tag Type	Configuration Tag	Trigger Type
Button	click	lp_lihat_detail	lp_lihat_detail_mbl	Google Analytics: GA4 Event	Google Analytic 4	Click - All Elements

JRC Banner

Element	Type	Event	Event (App)	Tag Type	Configuration Tag	Trigger Type
Image	click	lp_banner_jrc	lp_banner_jrc_mbl	Google Analytics: GA4 Event	Google Analytic 4	-

Kalibrr Banner

Element	Type	Event	Event (App)	Tag Type	Configuration Tag	Trigger Type
Image	click	lp_banner_kalibrr	lp_banner_kalibrr_mbl	Google Analytics: GA4 Event	Google Analytic 4	Click - All Elements

Expert Talks Banner

Element	Type	Event	Event (App)	Tag Type	Configuration Tag	Trigger Type
Image	click	lp_expertalks	lp_banner_expertalks_mbl	Google Analytics: GA4 Event	Google Analytic 4	Click - All Elements

Requirements Note

Flash Sale

The flash sale lasts for 3 days.

Kupon

Can be used many times.

S&K

S&K is created by BizOps.

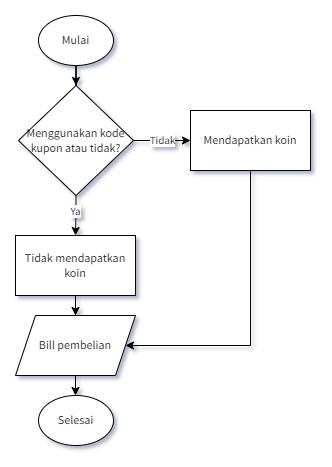

Koin

note

Penyebutan "kursus" berlaku untuk Arkademi Reguler dan "pelatihan" untuk Arkademi Prakerja.

Revision Log

Name	Date	Details
Tombol Tempel	7 Feb 2023	Menghapus tombol tempel yang diganti dengan menempel manual
S&K	21 Feb 2023	Mengubah poin satu pada bagian Syarat Ketentuan
S&K	22 Feb 2023	Memindahkan poin satu Syarat Ketentuan ke Penggunaan

---

Agenda

Event	Date	Time	Place	Product Owner/Lead	Participants
Technical Meeting	Tuesday, 7 Feb 2023	16:00 - 17:30	Offline	Linda	Front End: Arif Back End: Fauzan Mobile: Purbo Sys Adm: Luqman Supervision: Angga, Dillo
Kick Off	Wednesday, 8 Feb 2023	11:00 - 11:30	Offline & Online	Linda	Front End: Arif, DIlla Back End: Fauzan, Naufal, Kukuh Mobile: Purbo Sys Adm: Luqman Supervision: Angga, Dillo
